Description
SUPERMIG 316LSi
DESCRIPTION : SUPERMIG 316LSi is used for welding of 316 and 316L grade stainless steels, in a wide range of applications including the fabrication of pipe and plate. The higher Si level results in a smooth weld bead shape and even appearance with excellent toe blending particularly in fillet welds.
SIZE RANGE : 0.60 mm to 1.60 mm (0.025” to 0.062”)
FINISH : Bright Finish, Matte Finish, Semi Bright/Matte Finish

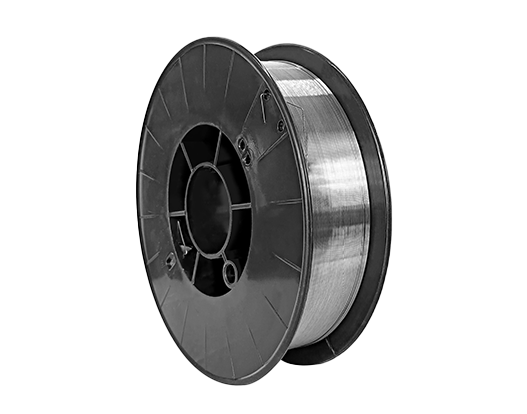

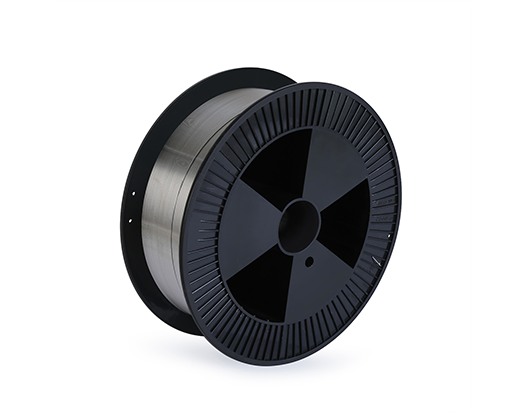

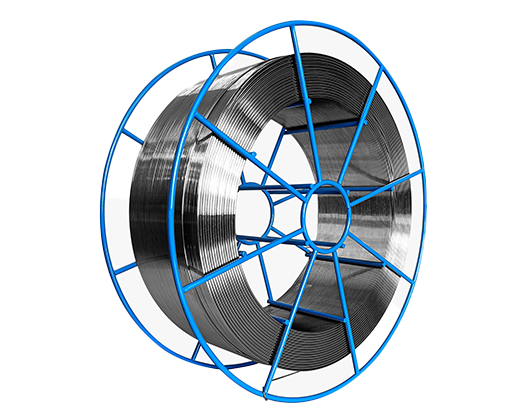

SUPERMIG 316LSi - TYPE OF PACKING :
| SD 300 / BS 300 | 11.34 Kgs/ 25 Lbs, 15 Kgs/ 30 Lbs/ 33lbs Layer Wound Plastic/ Metallic Spool. |
| SD 200 | 4.54 Kgs/ 10 Lbs Layer Wound Plastic Spool. |
| SD 100 | 0.700 Kgs/0.910 /2 lbs Layer Wound Plastic Spool. |

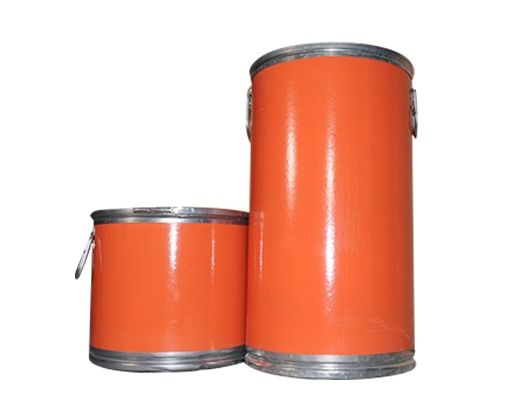

| Mig Wire in Drum | In Drums of 100-250 Kgs (200-550 Lbs) |
TechnicaL Specification
| PRODUCT NAME | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT ENERGY ISO-V(J) 20° C | WELDING CONDITIONS |
| SUPERMIG 316LSi | ER 316LSi | ≥ 350 | ≥ 510 | ≥30% | ≥ 80 | DC (+) |
